- ASROCK
Τιμή
€219 17 / 428 66 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.asrock.com/mb/AMD/X870%20LiveMixer%20WiFi/index.asp
Model

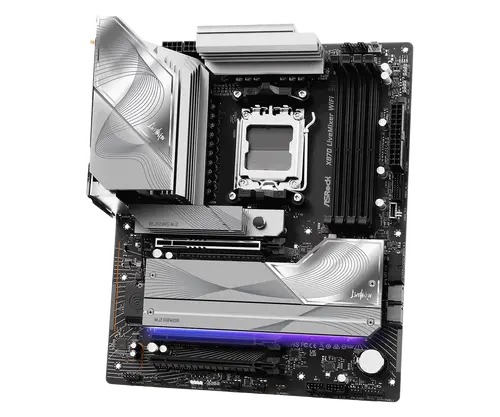

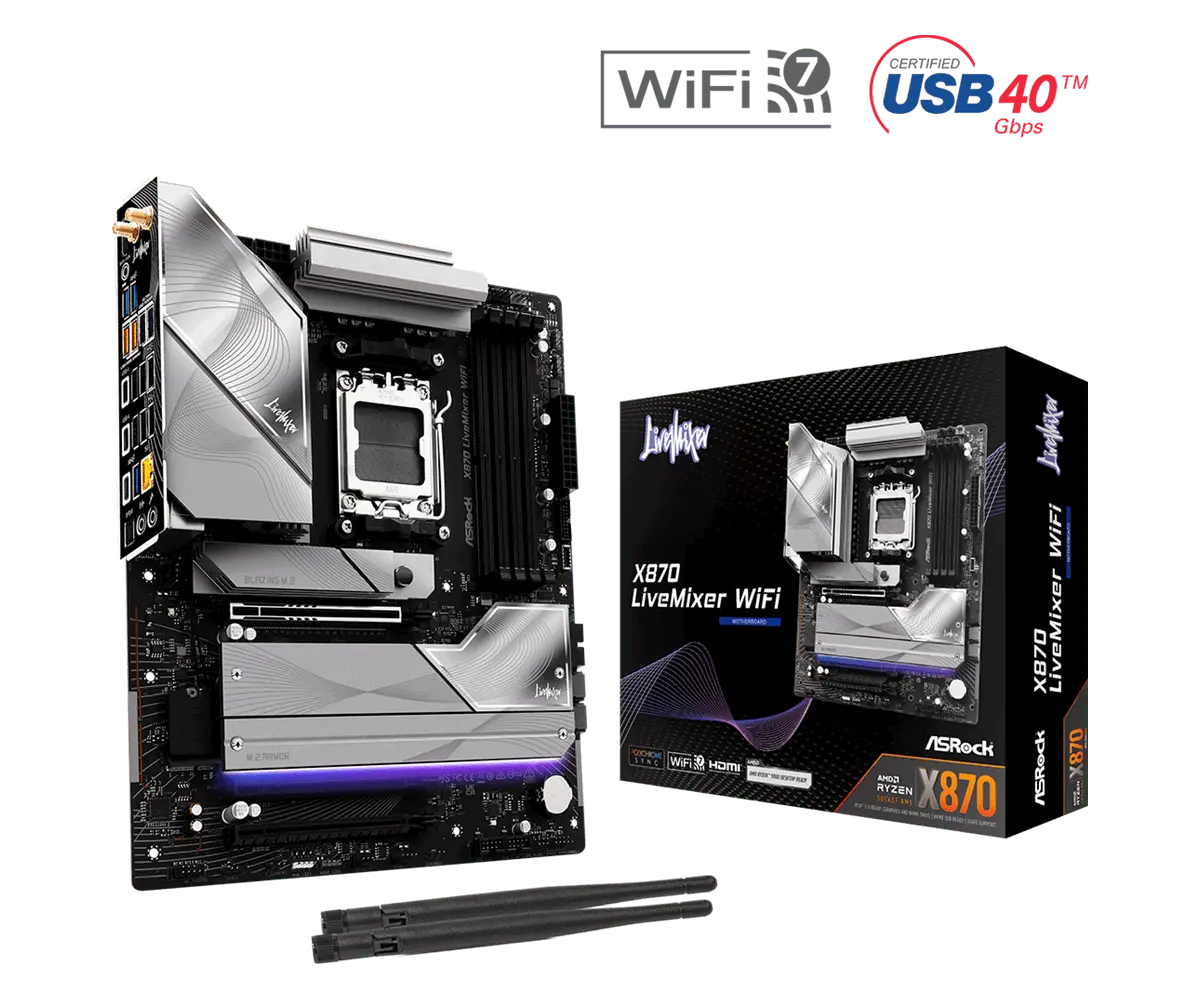

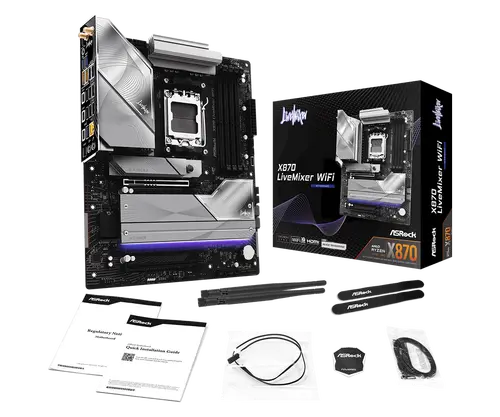

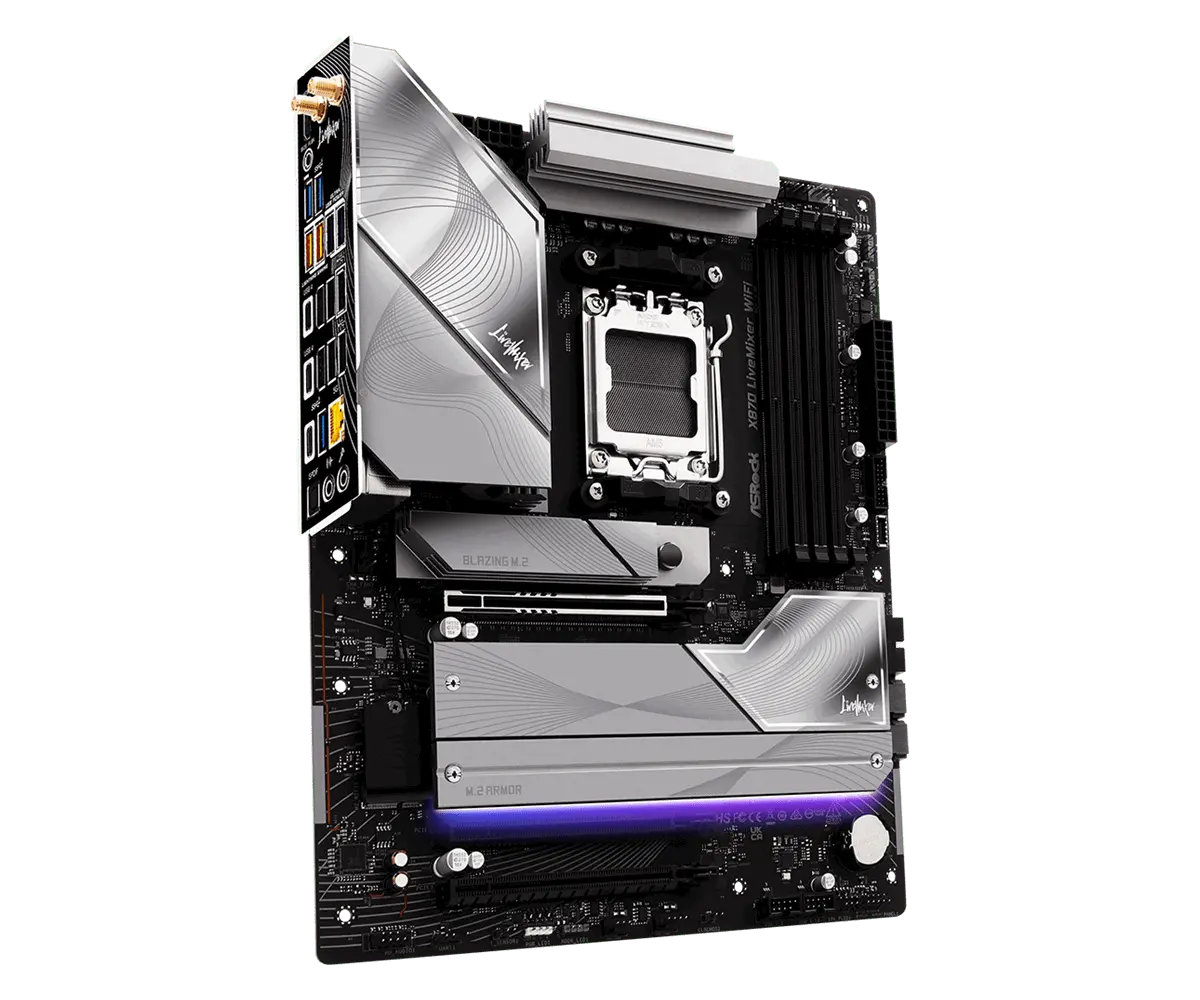

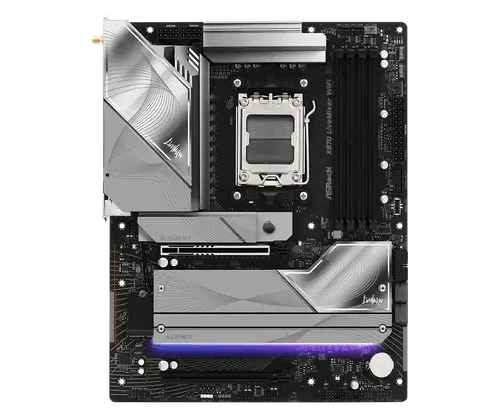

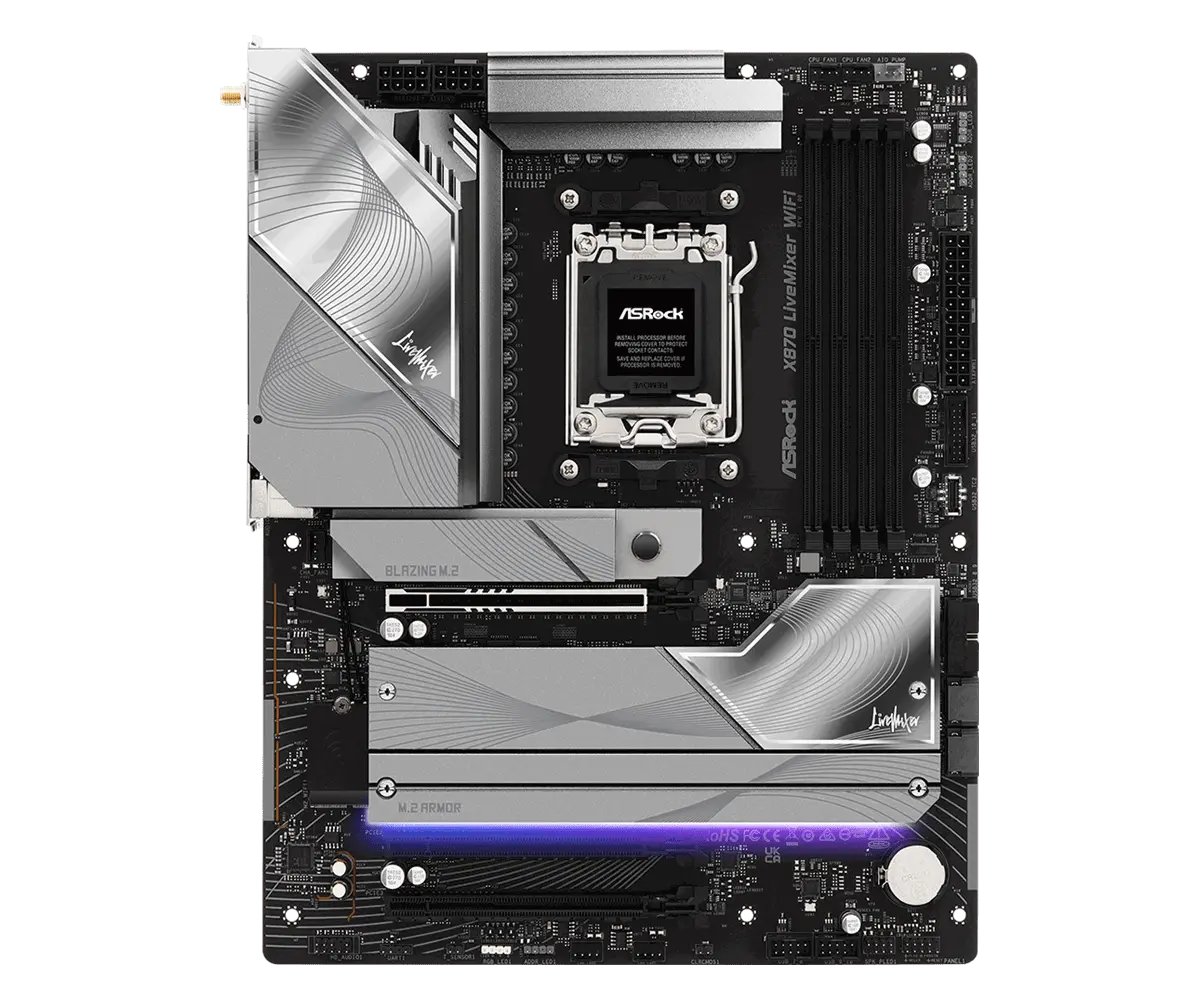

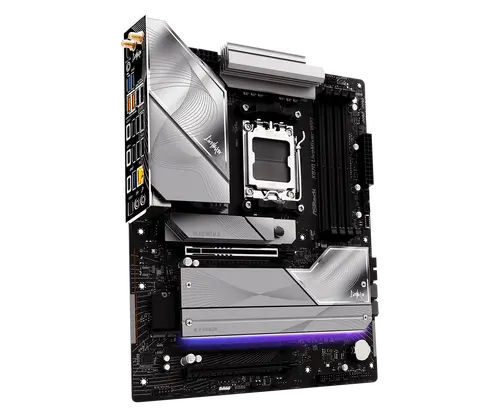

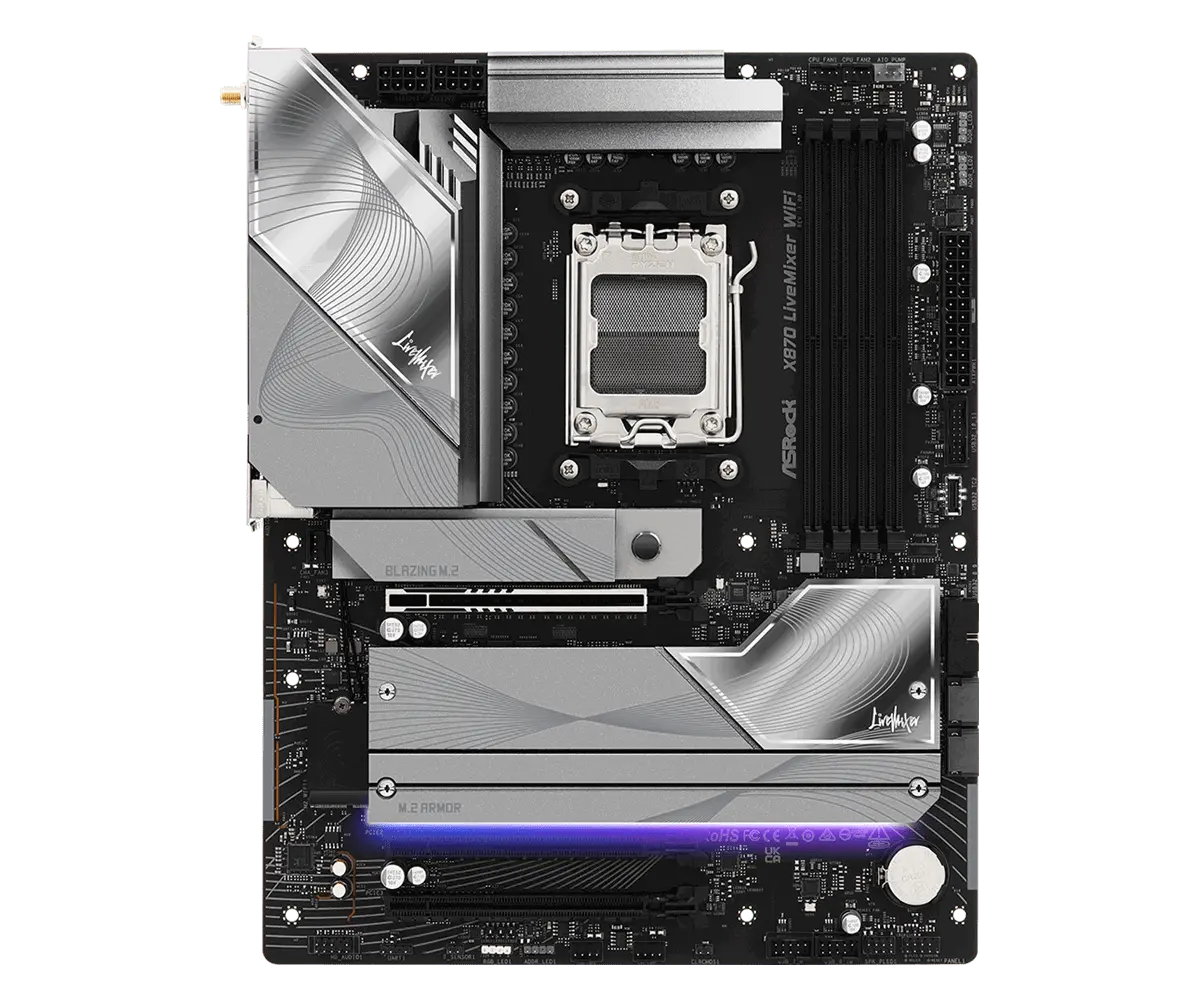

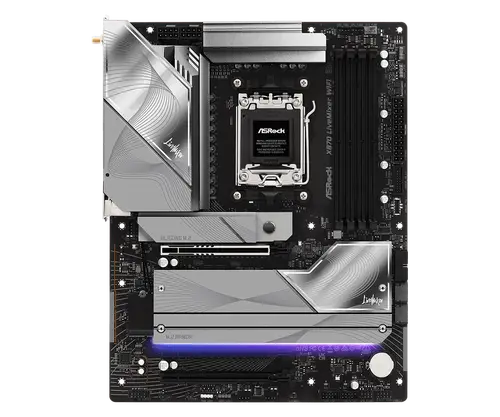

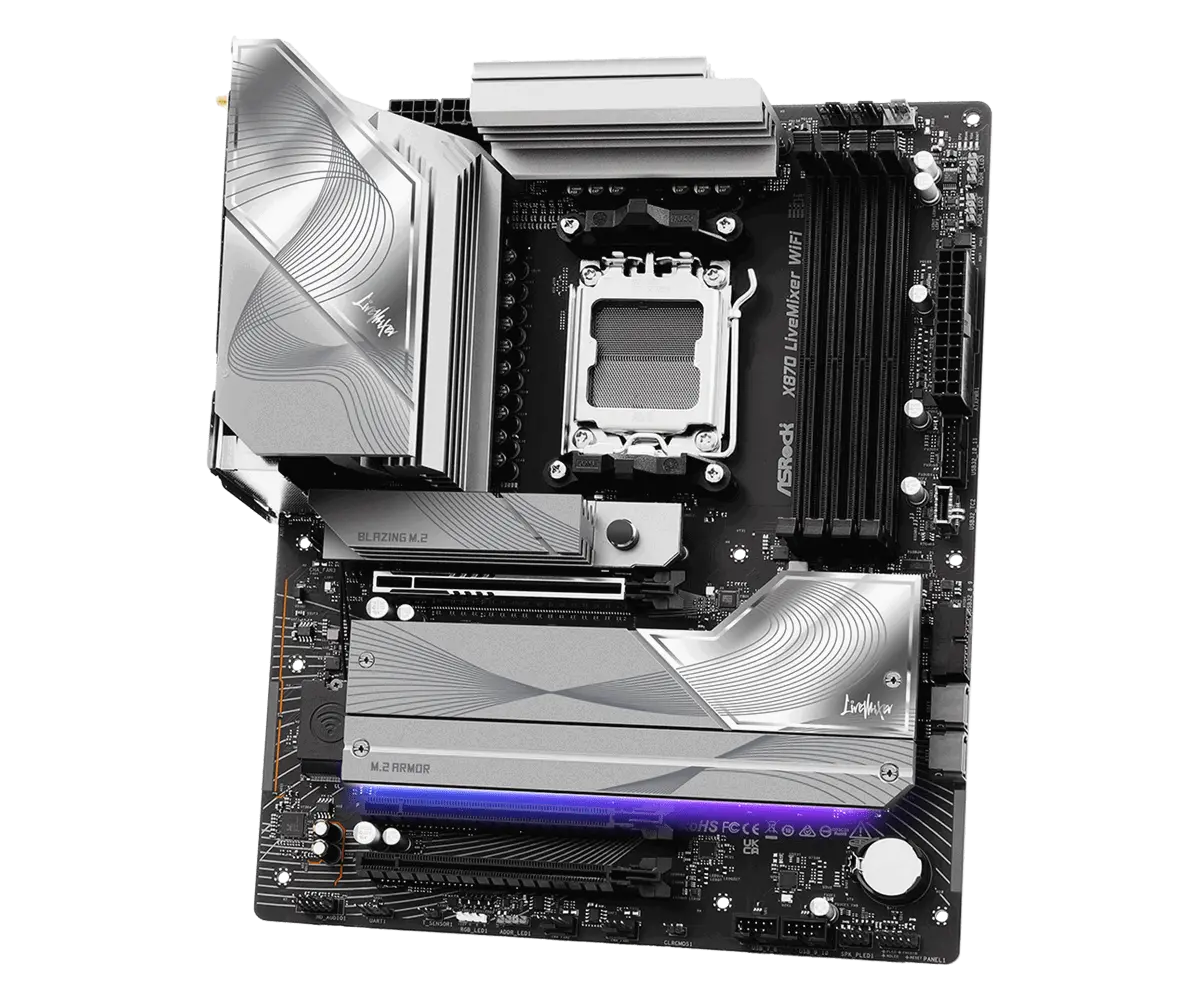

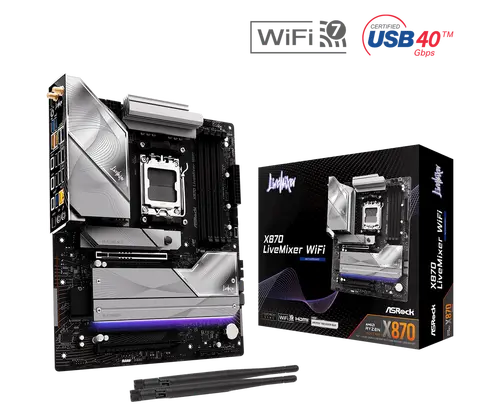

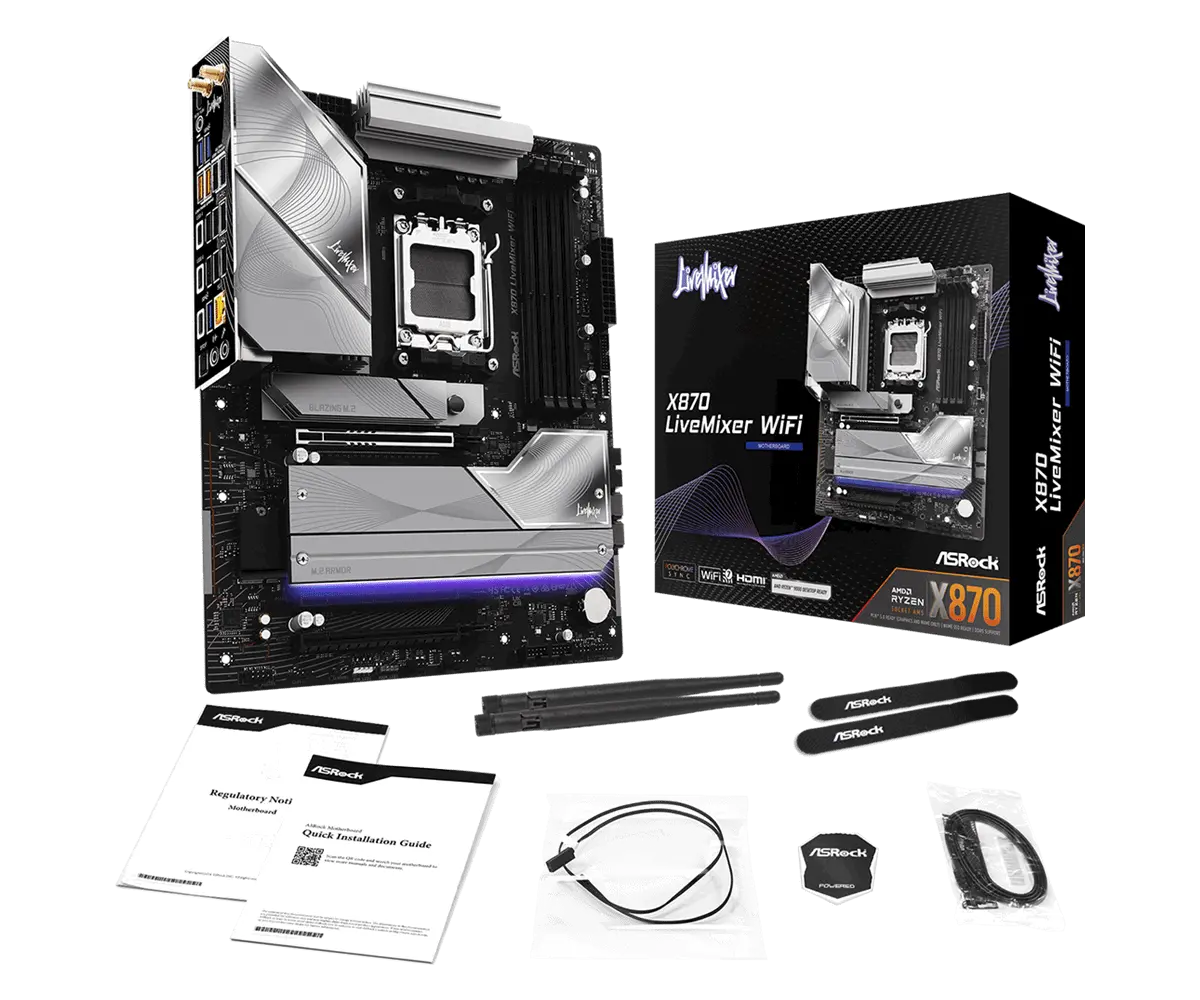

X870 LIVEMIXER WIFI
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.* USB4 controller(for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors.
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset
AMD X870
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_3 is occupied, PCIE2 will downgrade to x2 mode.
If M2_4 is occupied, PCIE3 will downgrade to x2 mode.
Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
M2_2 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1) series processors. M2_2 will be unavailable with 8000 (Phoenix 2) series processors.
If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2.
If M2_3 is occupied, PCIE2 will downgrade to x2 mode.
If M2_4 is occupied, PCIE3 will downgrade to x2 mode.
RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*
*Please refer to Memory Support List on ASRock's website for more information.

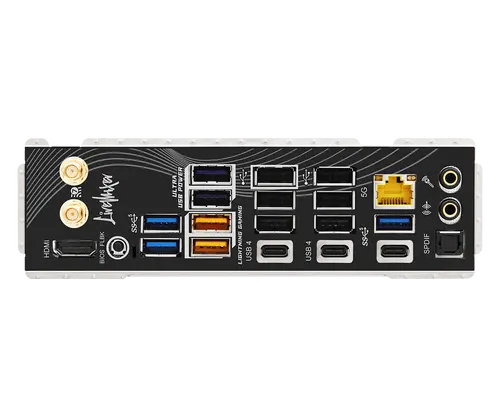

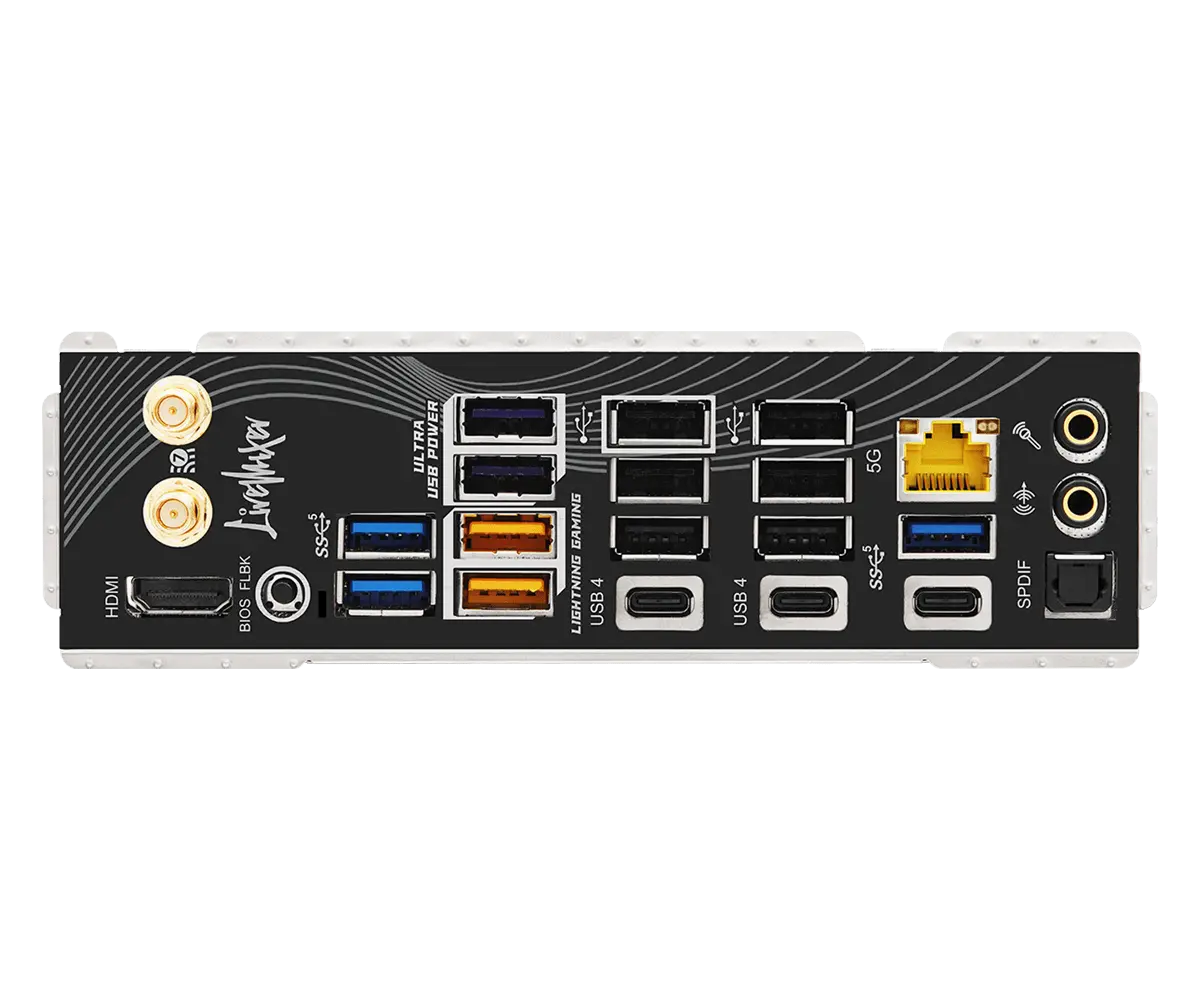

Rear panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Type-C Ports (40 Gb/s)*
1 x USB 3.2 Gen1 Type-C Port
7 x USB 3.2 Gen1 Type-A Ports (USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.)**
6 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
USB4 controller (for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors.
If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2.
** Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power.
USB
CPU:
- 2 x USB4 Type-C (Rear)
- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_4))
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 9 x USB 3.2 Gen1 Type-A (5 Rear (USB32_2, USB32_356, USB32_7), 4 Front))
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 10 x USB 2.0 (6 Rear, 4 Front)
Connectors
1 x SPI TPM Header
1 x Thermistor Cable Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
Lan
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
Realtek RTL8126
Wireless
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/be
Supports 2.4GHz/5GHz/6GHz* frequency band
Supports 160MHz channel bandwidth with 6GHz* frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO
* The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Bluetooth
5.4
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asrock.com/mb/AMD/X870%20LiveMixer%20WiFi/index.asp |
| Chipset | AMD X870 |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* |
| CPU's supported | * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* |
| Memory type | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* |
| Memory type | *Please refer to Memory Support List on ASRock's website for more information. |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Form Factor | 8 Layer PCB |
| Audio | Nahimic Audio |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) |
| Audio | Individual PCB Layers for R/L Audio Channel |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | 1 x BIOS Flashback Button |
| Rear panel I/O | 2 x Antenna Ports |
| Rear panel I/O | 1 x USB 3.2 Gen1 Type-C Port |
| Rear panel I/O | 1 x Optical SPDIF Out Port |
| Rear panel I/O | 1 x Line Out Jack (Gold Audio Jack) |
| Rear panel I/O | 1 x Microphone Input Jack (Gold Audio Jack) |
| Rear panel I/O | 6 x USB 2.0 Ports |
| Rear panel I/O | 2 x USB4 Type-C Ports (40 Gb/s)* |
| Rear panel I/O | 7 x USB 3.2 Gen1 Type-A Ports (USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.)** |
| Rear panel I/O | * Supports USB PD 3.0 up to 5V@3A (15W) charging |
| Rear panel I/O | USB4 controller (for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors. |
| Rear panel I/O | If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2. |
| Rear panel I/O | ** Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power. |
| LAN | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s |
| LAN | Realtek RTL8126 |
| Model | X870 LIVEMIXER WIFI |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| Expansion Slots | Supports NVMe SSD as boot disks |
| Expansion Slots | - 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x4 mode* |
| Expansion Slots | * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. |
| Expansion Slots | If M2_3 is occupied, PCIE2 will downgrade to x2 mode. |
| Expansion Slots | If M2_4 is occupied, PCIE3 will downgrade to x2 mode. |
| Wireless | Supports MU-MIMO |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module |
| Wireless | Supports 160MHz channel bandwidth with 6GHz* frequency band |
| Wireless | 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology |
| Wireless | Supports Bluetooth 5.4 |
| Wireless | Supports 2.4GHz/5GHz/6GHz* frequency band |
| Wireless | Supports IEEE 802.11a/b/g/n/ac/ax/be |
| Wireless | * The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported |
| Graphics | - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Graphics | - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics. |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Storage | - 2 x SATA3 6.0 Gb/s Connectors |
| Storage | * Supports NVMe SSD as boot disks |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* |
| Storage | - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | M2_1 is the first priority for M.2 installation. |
| Storage | M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. |
| Storage | M2_2 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1) series processors. M2_2 will be unavailable with 8000 (Phoenix 2) series processors. |
| Storage | If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2. |
| Storage | If M2_3 is occupied, PCIE2 will downgrade to x2 mode. |
| Storage | If M2_4 is occupied, PCIE3 will downgrade to x2 mode. |
| Bluetooth | 5.4 |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x RGB LED Header* |
| Connectors | 3 x Addressable LED Headers** |
| Connectors | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| Connectors | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| Connectors | 1 x Thermistor Cable Header |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Connectors | 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
| Connectors | 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
| Connectors | 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** |
| Connectors | * Supports in total up to 12V/3A, 36W LED Strip |
| Connectors | ** Support in total up to 5V/3A, 15W LED Strip |
| Connectors | *** CPU_FAN1 supports the fan power up to 1A (12W). |
| Connectors | CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). |
| Connectors | CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB 3.2 Gen1 Type-C (Rear) |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Front) |
| USB | - 10 x USB 2.0 (6 Rear, 4 Front) |
| USB | - 2 x USB4 Type-C (Rear) |
| USB | - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_4)) |
| USB | - 9 x USB 3.2 Gen1 Type-A (5 Rear (USB32_2, USB32_356, USB32_7), 4 Front)) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD X870 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 4 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 1 Gbps |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | Yes |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
ASRock X870 LiveMixer WiFi — дънна платка AM5 за създатели на съдържание и стриймъри
ASRock X870 LiveMixer WiFi е създадена за хора, които правят повече от игри. С чипсет AMD X870, богат набор USB портове и двойна мрежа плюс Wi-Fi 7, тя превръща AM5 конфигурацията ви в център за стрийминг, захранване на видео и многозадачност. Поставете процесор Ryzen 9000 или 7000 серия и оставете платката да се погрижи за периферията.
Ключови Предимства
- LiveMixer свързаност — изключително богат заден панел с голям брой USB портове, така че камери, capture карти, аудио интерфейси и контролери да останат включени едновременно.
- Двойна кабелна мрежа — 2.5 Gbps и 1 Gbps LAN портове ви позволяват да разделите игровия от стрийминг трафика или да обедините двата за повече bandwidth.
- Готовност за Wi-Fi 7 — най-новият безжичен стандарт с висока скорост и ниска латентност за конфигурации без кабели.
- PCIe 5.0 и DDR5 — поддръжка на най-бързите актуални видеокарти и памети, както и на PCIe 5.0 M.2 носители.
- Дългосрочна AM5 платформа — съвместимост с процесори AMD Ryzen 9000, 8000 и 7000 серия на сокет AM5.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Производител | ASRock |
| Модел | X870 LiveMixer WiFi |
| Сокет | AMD AM5 |
| Чипсет | AMD X870 |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Wi-Fi | Wi-Fi 7 |
| LAN | 2.5 Gbps + 1 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
| EAN | 4711581491823 |
Какво има в кутията
- Дънна платка ASRock X870 LiveMixer WiFi
- Заден I/O панел (ако не е предварително монтиран)
- SATA кабели
- Wi-Fi антена
- Винтове за монтаж на M.2
- Ръководство за бърза инсталация и диск за поддръжка
Εγγραφείτε στο Newsletter μας
Εγγραφείτε στο online newsletter μας και μάθετε πρώτοι για προσφορές και νέα προϊόντα.
ΕΙΚ: 203294915 · Αρ. ΦΠΑ: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Τρόπος πληρωμής
- Πιστωτική/Χρεωστική κάρτα
- Τραπεζική μεταφορά
